Melon Seed Shelling Machine

by Oladimeji Israel Adenle
(Osogbo , Osun State Nigeria)

Melon Seed Shelling Machine Sketch

Melon Seed Shelling Machine Sketch

Melon Seed Shelling Machine Sketch

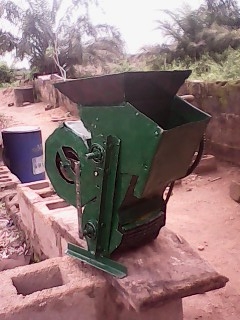

Melon Seed Shelling Machine 1
Melon Seed Shelling Machine 2
Melon Seed Shelling Machine 3

THE MACHINE HAS THREE ZONES ,THE FIRST IS THE UN-SHELLED SEED HOPPER,


THE SECOND IS THE DEVICE WHICH PICK THE SEEDS ONE AFTER THE OTHER AND

THE THIRD IS THE SEED BENDER,

THE FOURTH IS THE CASING IN WHICH SEED
AND SHELL SEPARATING BRUSH IS PUT,

AND THE FIFTH IS A MANUAL BLOWER
BRIEF DESCRIPTION OF INVENTION,

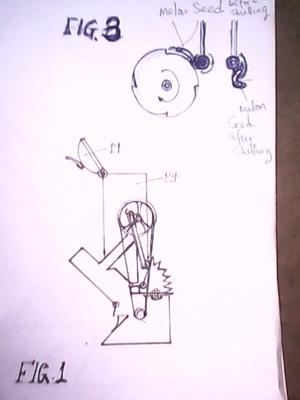

FIG 2,SHOWS THE OUTWARD APPEARANCE OF THE SHELLER,SHOWING ALL THE FIVE PARTS OF THE MACHINES MENTIONED ABOVE,

FIG. 3 SHOWS HOW THE SEED BENDER BENDS THE SEEDS WHEN THE SEED PICKER PICK THE SEED ONE AFTER THE OTHER AND THE PICKED SEED IS BENT.

DETAIL DESCRIPTION:
WHEN THE SEED MADE IMPACT WITH THE SEED BENDER.
AFTER PICKING SEED ONE AFTER THE OTHER WITHOUT MISTAKENLY PICKING TWO AT A TIME THE PICKED SEED IS SHELLED WHEN THE PICKED SEED MADE IMPACT
WITH THE SEED BENDER SEE FIG .3 SHELLED SEED WHICH MADE UP OF THE SHELL AND SEED COMBINED IS DEPOSITED INSIDE THE CASING LINE WITH IRON
ROD INSIDE IT,THERE IT IS THEN SCRUBBED WITH A SCRUBBING BRUSH TO REMOVE THE SHELL FROM SEED, COMPLETELY,SEPARATION IS ACHIEVED BY BLOWER.
