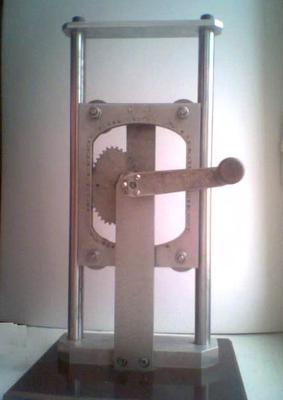

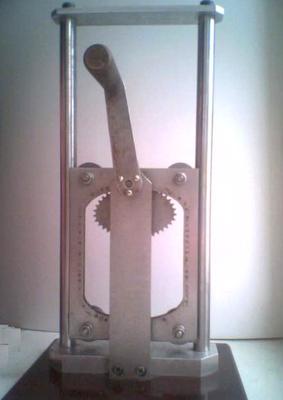

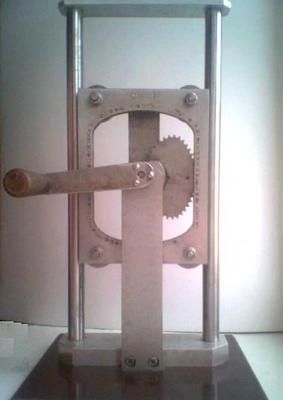

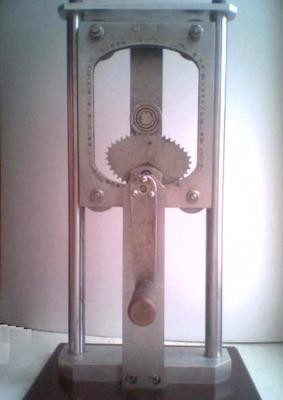

HIGH-EFFICIENCY RODLESS GEAR CONVERTER OF RECIPROCATION INTO ROTATION AND VICE VERSA

by Inventor
(Russia)





The basic application of the invention: in various mechanisms and engines where reciprocal motion is converted into rotary, instead of the crank mechanism.


Technical advantages of the invention in comparison with the widely used slider crank mechanism:

- High transformation efficiency of reciprocal motion into shaft rotation (up to 50% more efficient than crank mechanism)

- Ability to use one mechanism at once for working with two opposite set pistons (for two cylinders) in piston engines of internal combustion.

- Ability to work with both linear reciprocal motion, and with nonlinear motion.

- Simplicity of design, only 4 working elements.

The principle of the invention is based on the use of non-linear (non-circular) forms of interacting working elements of the converter. The nonlinear characteristics of their interaction achieve:

- High efficiency conversion types of motion.

- Uninterrupted interaction of the working elements of the invention.

- Synchronization of their motion throughout the cycle, including maintenance of gearing in each phase of the motion.

For more info visit invention website http://www.topnew.narod.ru/index_e.htm

E-mail: techs@front.ru
